Lawrence Primer Tube for Sharps Rifles & Carbines

Item #: Z9164

Click on an image to enlarge

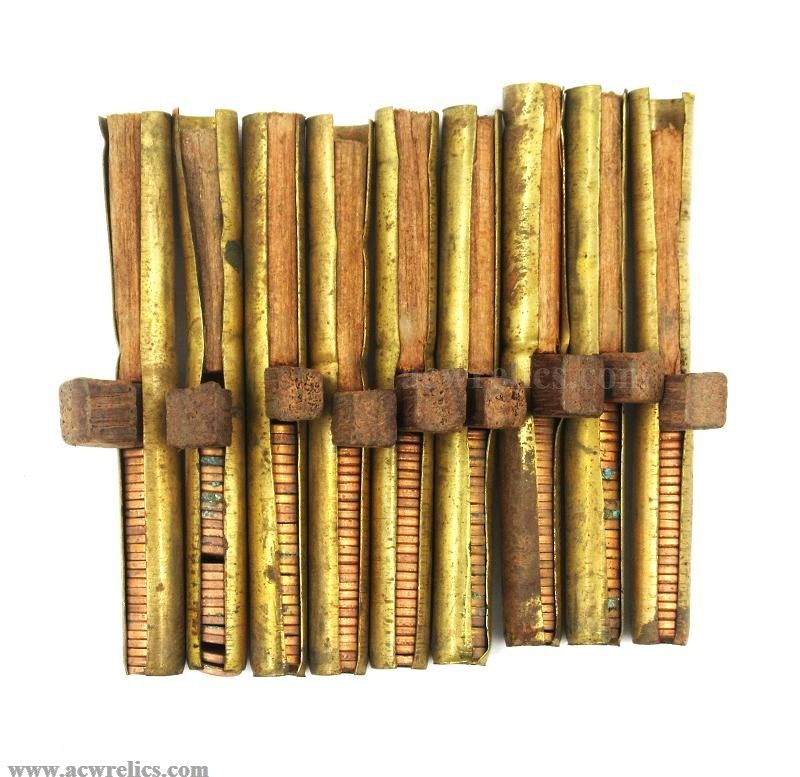

Z9164 Lawrence Primer Tube for Sharps Rifles & Carbines

Description: Here is a very nice example of a Lawrence primer tube charger made for Sharps rifles and carbines. The charger consists of a brass tube, a wooden dowel, and a wooden chuck or piston. The copper pellet primers were originally contained on the opposite side of the wooden chuck.

These improved pellet primers were manufactured under U.S. Patent No. 9,820, dated June 28, 1853, and were designed for use in conjunction with Patent No. 9,308 of October 5, 1852, which covered a new method of priming firearms. In use, the charger was inserted into the mechanism, and the wooden chuck or piston was pressed down, feeding 20 or more primers into the system.

Once emptied, the spent charger could be removed, leaving the primers in place. This particular example retains over 20 pellet primers along with its original wooden chuck. The brass tube shows only light oxidation, consistent with age.

Measures: OAL 1.96”

Reference: "Round Ball to Rimfire” Thomas Vol. 2 Pg. 188

Price: $150.00 Each, UPS Shipping Required

Shipping Weight: 0.25 lb

Your Price$150.00 USD

Disclaimer for Antique Firearms and Ammunition:

Americancivilwarrelics.com strongly recommends that these artifacts be enjoyed and appreciated for their historical significance and not ever fired. By ordering you are acknowledging these facts, warnings and assume full responsibility for your personal actions with regard to them.

We DO NOT sell modern guns, all our inventory will be Pre-1898 and are classified by the ATF as antiques and require no government paperwork to own.

All ammunition is sold as "Collectable/Display Ammunition" and is NOT meant to be fired. By ordering you are acknowledging these facts, warnings and assume full responsibility for your personal actions with regard to them.
